HDPE Corrugated Pipe — Techduto NBR
Cable protection certified to NBR 15715 — 750 N and a service life of over 75 years

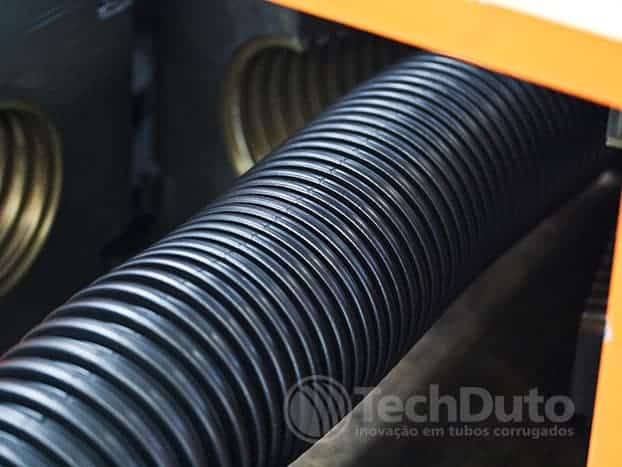

Flexible corrugated HDPE conduit compliant with NBR 15715, with a tensile strength of 750 N, an integrated cable guide, and a service life of over 75 years, designed to protect electrical, telecommunications, and fiber-optic cables. Also available in special UV and AC lines formulated for solar power plants.
The Problem
Metal and concrete conduits used to protect cables are susceptible to corrosion in acidic soils, require costly maintenance, and have a limited service life. Their heavy installation requires specialized equipment and larger crews, increasing both costs and project timelines.
A Solução HDPE Corrugated Pipe
Techduto NBR eliminates corrosion, withstands impacts of 750 N, and has a service life of over 75 years. Installation is 35% faster than with metal alternatives—the pipe is lightweight and flexible, and the sleeve and O-ring connections require no special tools. Available in UV-resistant versions for solar power plants and with an integrated cable guide.
Diferenciais que se provam
Special UV and AC lines: engineering polymer formulated for years under the sun at photovoltaic plants—where ordinary pipe fails.
Reinforced anti-UV, not the minimum
All HDPE has anti-UV, but only until it's buried. The UV line adds an extra layer, for years of direct sun under the trackers.
Certified flame-retardant
Certified flame-retardant additive, required at plants and power cabinets. The standard pipe doesn't have it.
Field-proven across Latin America
UV and AC lines at dozens of plants: Brazil, Chile, Argentina, and Mexico.
Above the NBR 15715 standard
Compression up to 750 N and a reinforced additive for years of direct sun.
Technical Specifications
Dados técnicos do HDPE Corrugated Pipe — Techduto NBR
ELN and ELS Lines
| Gauge | Nominal Diameter | Outer Diameter (mm) | Inner Diameter (mm) | Packaging |
|---|---|---|---|---|
| 5/8 | 20 | 20 | 16 | 25- or 50-meter rolls |
| 3/4 | 25 | 25 | 20 | 25- or 50-meter rolls |
| 1 | 32 | 32 | 26 | 25- or 50-meter rolls |
NBR Line
| Gauge | Nominal Diameter | Outer Diameter (mm) | Inner Diameter (mm) | Packaging |
|---|---|---|---|---|
| 1.1/4 | 40 | 40.5 | 30.3 | Rolls 25–100 m / Bars 6–12 m |
| 1.1/2 | 50 | 50.5 | 40.7 | Rolls 25–100 m / Bars 6–12 m |
| 2 | 63 | 63.5 | 52.3 | Rolls 25–100 m / Bars 6–12 m |
| 3 | 90 | 90.2 | 75 | Rolls 25–50 m / Bars 6–12 m |
| 4 | 100 | 99 | 83 | Rolls 25–50 m / Bars 6–12 m |
| 4 | 110 | 111 | 94 | Rolls 25–50 m / Bars 6–12 m |
| 4.1/2 | 125 | 125 | 104 | Rolls 25–50 m / Bars 6–12 m |
| 5 | 140 | 140 | 120 | Rolls 25–50 m / Bars 6–12 m |
| 6 | 160 | 160 | 135 | Rolls 25–50 m / Bars 6–12 m |
| 8 | 200 | 200 | 170.5 | 30-meter rolls / 6–12-meter bars |
| 10 | 250 | 246 | 215 | 30–50 m rolls / 6–12 m bars |
Advantages & Differentiators
Why Techduto NBR is a leader in cable protection
Load capacity of 750 N
Withstands impacts and compression in harsh soil conditions without deforming.
75+ Years of Service Life
Corrosion-resistant, chemically resistant, and dimensionally stable.
35% Faster Installation
Lightweight, flexible, and featuring quick-connect fittings with sleeves and O-rings.
Reinforced UV Line
An extra layer of anti-UV additive, for years of sun at solar plants — far beyond the minimum anti-UV of an ordinary pipe.
AC Flame-Retardant Line
Certified flame-retardant additive, for the fire safety required at solar plants and power installations.
In accordance with NBR 15715
ABNT certification that guarantees standardized dimensions, strength, and quality.
25% Less Maintenance
Eliminates the need for periodic replacement and corrosion repairs throughout its entire service life.
Applications
Where HDPE Corrugated Pipe makes the difference
