Wavin Bidim© Geotextile
100% polyester nonwoven geotextiles — filtration, drainage, and soil reinforcement
100% polyester nonwoven geotextile mats with full traceability for filtration, separation, drainage, and soil reinforcement. GT, RT, CC, and VP lines offer a 25% cost reduction compared to traditional systems.
The Problem
Drainage systems using gravel and sand require large volumes of material, heavy-duty transportation, and time-consuming installation. Low-quality geotextile mats, made from a cotton blend, degrade rapidly in acidic soils or when exposed to chemicals, compromising the entire project.
A Solução Wavin Bidim© Geotextile
Bidim© Wavin is made of 100% pure needle-punched polyester—with no cotton blend. It offers indefinite resistance to acids, alkalis, oils, solvents, and roots. Full traceability is ensured by the original Bidim brand, guaranteeing the quality the market demands. Costs are reduced by up to 25% compared to traditional systems using gravel or sand.
Technical Specifications
Dados técnicos do Wavin Bidim© Geotextile
| Type | Resistance | Raw Material | Dimensions |
|---|---|---|---|
| GT7 | 4.7 kN/m | Polyester | 2.30 or 4.60 m x 100–200 m |
| RT7 | 7 kN/m | Polyester | 2.30 or 4.60 m x 100–200 m |
| RT8 | 8 kN/m | Polyester | 2.30 or 4.60 m x 200 m |
| RT9 | 9 kN/m | Polyester | 2.30 or 4.60 m x 200 m |
| RT10 | 10 kN/m | Polyester | 2.30 or 4.60 m x 200 m |
| RT14 | 14 kN/m | Polyester | 2.30 or 4.60 m x 150 m |
| RT16 | 16 kN/m | Polyester | 2.30 or 4.60 m x 150 m |
| RT21 | 21 kN/m | Polyester | 2.30 or 4.60 m x 150 m |
| RT26 | 26 kN/m | Polyester | 2.30 or 4.60 m x 150 m |
| RT31 | 31 kN/m | Polyester | 2.30 or 4.60 m x 100 m |
| CC10 | 5 kN/m | Polyester | 2.10 m x 300 m |
| ExtraDren | 200 kPa | Polypropylene | 2.00 m x 20 m |
| VP05 | 98 N | Polyester | 1.00 m x 200 m |
Advantages & Differentiators
Why Bidim is a leader in geotextiles in Brazil
100% Pure Polyester
Contains no cotton, which decomposes quickly in the soil.
Total Chemical Resistance
Resistant to acids, alkalis, oils, solvents, and roots.
Full Traceability
Genuine Bidim brand with quality control and warranty.
25% More Economical
Cost savings compared to traditional filtration systems.
Multiple Lines
GT (filtration), RT (reinforcement), CC (concrete curing), VP (waterproofing).

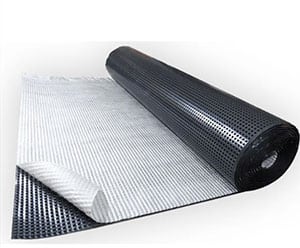

Integrated ExtraDren
HDPE membrane + PP geotextile for high-performance subdrainage.
Applications
Where Wavin Bidim© Geotextile makes the difference
